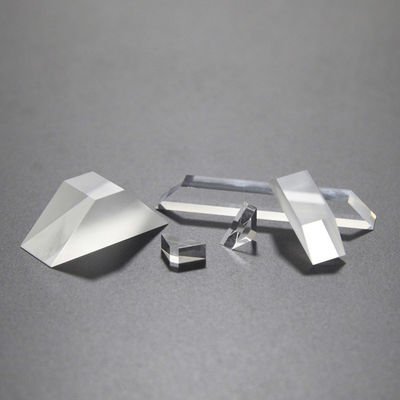

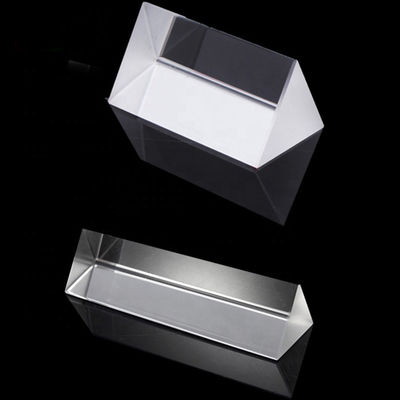

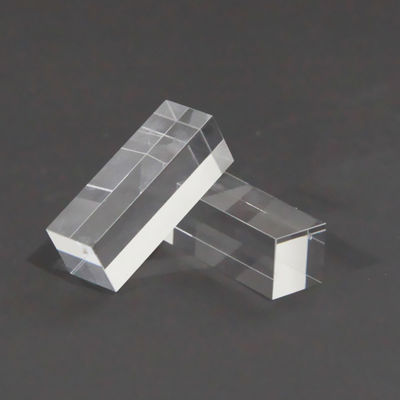

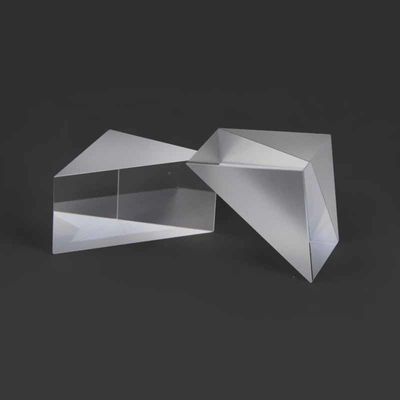

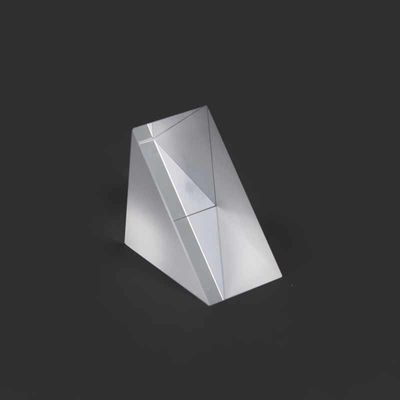

Low Thermal Expansion Good Transmission Rectangular Prism
Spécification du produit
Lieu d'origine:
CHANGHAÏ, CHINE
Nom de la marque:
advance
Numéro de modèle:
005
Quantité minimum de commande:
10 morceaux
Prix:
$100.00/Pieces 10-99 Pieces
Capacité d'approvisionnement:
10000000 morceaux/morceaux par mois
Détails du produit
Warranty:
-
Customized Support:
OEM, ODM
Material:
BK7 et tout autre verre optique, BK7 et tous autres verre optique, quartz, saphir, GE, SI, ZnSe, CaF
Surface Quality:
60/40
Dimension Tolerance:
+/-0.01mm
Angle Tolerance:
3" ~2'
Flatness:
N=1~3
Length:
3-100mm
Width:
3-100mm
Height:
3-100mm
Length Tolerance:
+/-0.01mm
Width Tolerance:
+/-0.01mm
Angle Tolerance:
3" - 2'
Surface Quality:
10/5~60/40
Application Area:
Représentation, éclairage, laser etc.
Coating:
sur demande
Port:
Changhaï
Description du produit
Specification
Materials | BK7 or other optical glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 etc |
Length | 3~100mm |
Width | 3~100mm |
Height | 3~100mm |
Length tolerance | +/-0.01mm |
Width tolerance | +/-0.01mm |
Height tolerance | +/-0.01mm |
Angle tolerance | 3"~2' |
Irregularity | ΔN=0.1~0.5 |
Surface accuracy | N=1~3 |
Surface quality | 10/5~60/40 |
Coating | Upon request |
Application area | Imaging,Lighting,Laser etc |
Recommend Products
Company Profile
Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, equipment, laser etching, special lighting, scientific research institutions, etc. Company Advantages:
1. Have comprehensive design, production and sales capabilities, and provide customers with one-stop convenient procurement services; 2. It has tens of thousands of optical molds and samples, which can provide customers with fast proofing services with low cost; 3. Be able to participate in the customer's new product research and development early, provide feasible plans and suggestions, and make the project less detours;
Certifications
Exhibition
Packing & Delivery
FAQ
Q:What are your main products or Which fiefd do your products be used?
A:We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical
lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as
imaging,Laser,Lighting etc.
Q:What's your advantage?
1. We have about ten thousands optical modules and fixturesin stock,and employ several outstanding technicians and manager.that
will enable to provide customer excellent quality in shortleadtime,also can save the plenty of develop cost for customer.
2. We can help customer to optimize the optical system whichthey dislike,and provide the free optical solution or suggestion.
A:We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical
lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as
imaging,Laser,Lighting etc.
Q:What's your advantage?
1. We have about ten thousands optical modules and fixturesin stock,and employ several outstanding technicians and manager.that
will enable to provide customer excellent quality in shortleadtime,also can save the plenty of develop cost for customer.
2. We can help customer to optimize the optical system whichthey dislike,and provide the free optical solution or suggestion.
Q:What's your MOQ?
A:10pcs.
A:10pcs.
Q:What's your leadtime?
A:1day for inventory and 25~35days for the new project.
Q:What's your shipping type?
A:Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.
Q:What's the payment condition?
A:T/T,L/C,VISA,Paypal,Alipay or Negotiation.
Q:What's your quality guarantee period?
A:Three years.
Q:What's your shipping type?
A:Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.
Q:What's the payment condition?
A:T/T,L/C,VISA,Paypal,Alipay or Negotiation.
Q:What's your quality guarantee period?
A:Three years.
