Optical JGS1 fused silica quartz glass rod optics endoscope lens

Name: Optical JGS1 fused silica quartz glass rod optics endoscope lens
Brand: Shanghai Advance Optical-Electronics Technology Co., Ltd
SKU: ODM/OEM
Price: 55.00 USD
Availability: InStock

Tous les produits

lentille sphérique
(136)

Filtre optique
(34)

Prisme optique
(31)

Lentilles cylindriques
(36)

Lentille à tige
(11)

lentille à bille
(10)

Miroirs réflecteurs
(13)

Lentilles de caméra
(61)

Modules optoélectroniques
(1)

Lentille asphérique
(16)

Conception optique
(15)

lentille d' endoscope
(1)

Verre saphir
(7)

Lentilles infrarouges
(4)

Composants optiques en verre
(13)

Composants d'objectif de caméra
(1)

Certificat

Je suis en ligne une discussion en ligne

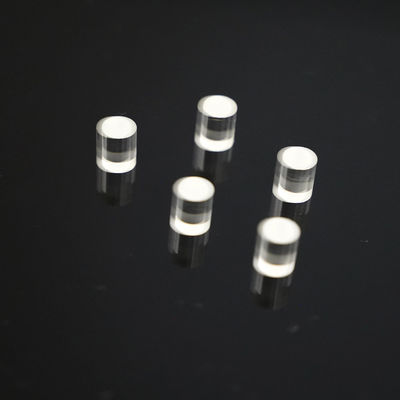

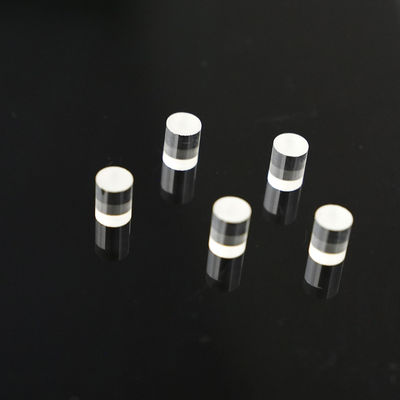

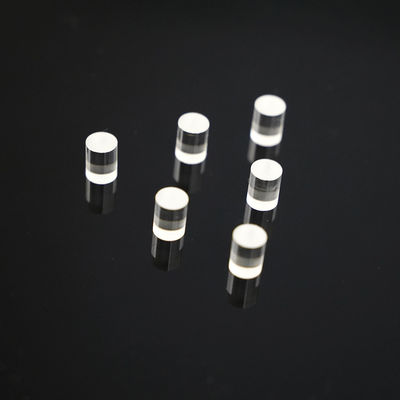

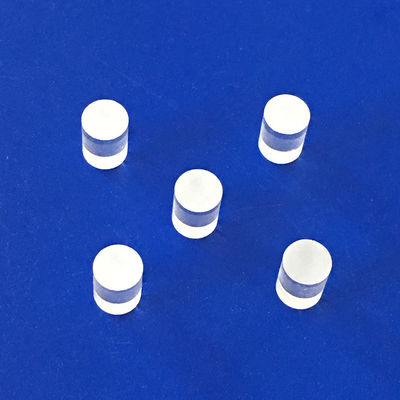

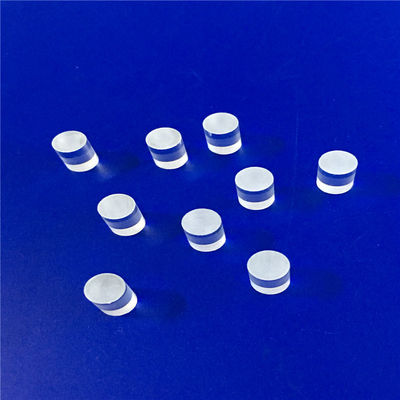

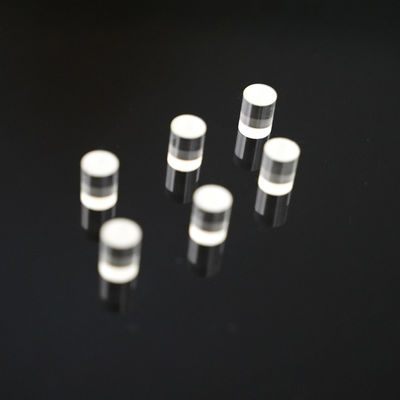

Optical JGS1 fused silica quartz glass rod optics endoscope lens

Image Grand : Optical JGS1 fused silica quartz glass rod optics endoscope lens

Détails sur le produit:

Lieu d'origine:	CHANGHAÏ, CHINE
Nom de marque:	Advance
Numéro de modèle:	ODM/OEM

Conditions de paiement et expédition:

Quantité de commande min:	100 morceaux
Prix:	$10.00/Pieces 100-999 Pieces
Détails d'emballage:	Le sac de Bag/PE/bulle d'air nettoyés à l'aspirateur Bag/EPE écument/cartons
Capacité d'approvisionnement:	500000 morceaux/morceaux par mois

Contact

Optical JGS1 fused silica quartz glass rod optics endoscope lens

description de

Type:	Quartz clair Rod	application:	Applications optiques
Diamètre extérieur:	1.50-80mm	Composant de silice:	99,99%
Transmittance:	90%	Ovality:	0,1
Nom de produit:	Rod Lens	Matériel:	BK7/Quartz/Infrared/Sapphire
Diamètre:	0.5-50mm	Longueur:	0.5-120mm
Tolérance de diamètre/longueur:	±0.005mm	Exactitude extérieure:	N=1-3
irrégularité:	Changement de N=0.1-0.5	Qualité extérieure:	10/5-60/40
Revêtement:	sur demande	Domaine d'application:	Représentation, éclairage, laser etc.
Port:	Changhaï ou condition

Specification

Optical JGS1 fused silica quartz glass rod optics endoscope lens

Material	BK7, Quartz, Infrared, Sapphire
Diameter	0.5-50mm
Length	0.5-120mm
Diameter Tolerance	±0.005mm
Length Tolerance	±0.005mm
Irregularity	Change In N=0.1-0.5
Surface quality	10/5-60/40
Coating	Upon request
Application Area	Imaging,Lighting,Laser etc

Company Profile

Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc. Company Advantages: 1. Have comprehensive design, production and sales capabilities, and provide customers with one-stop convenient procurement services; 2. It has tens of thousands of optical molds and samples, which can provide customers with fast proofing services with low cost; 3. Be able to participate in the customer's new product research and development early, provide feasible plans and suggestions, and make the project less detours.

Certifications

Exhibition

Packing & Delivery

FAQ

Q:What are your main products or Which fiefd do your products be used? A:We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as imaging,Laser,Lighting etc. Q:What's your advantage? 1. We have about ten thousands optical modules and fixturesin stock,and employ several outstanding technicians and manager.that will enable to provide customer excellent quality in shortleadtime,also can save the plenty of develop cost for customer. 2. We can help customer to optimize the optical system whichthey dislike,and provide the free optical solution or suggestion. Q:What's your MOQ? A:10pcs. Q:What's your leadtime? A:1day for inventory and 25~35days for the new project. Q:What's your shipping type? A:Usually by Fedex,DHL,TNT,EMS etc or Customer appointed. Q:What's the payment condition? A:T/T,L/C,VISA,Paypal,Alipay or Negotiation. Q:What's your quality guarantee period? A:Three years.
