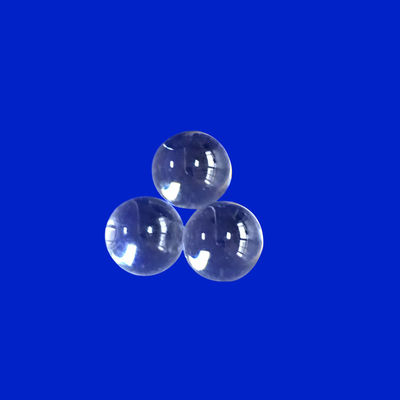

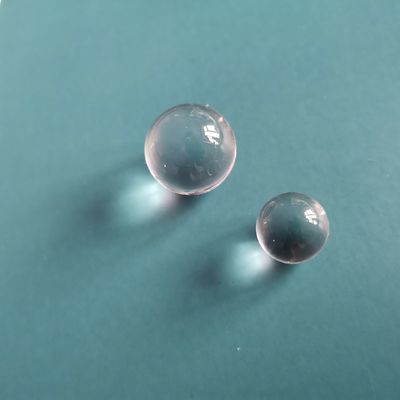

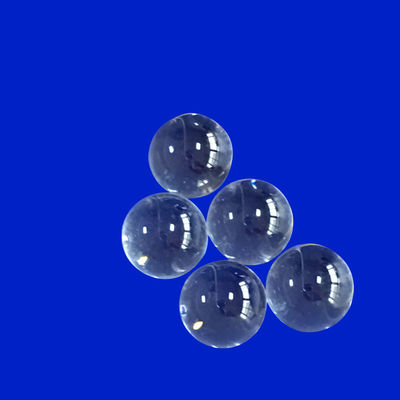

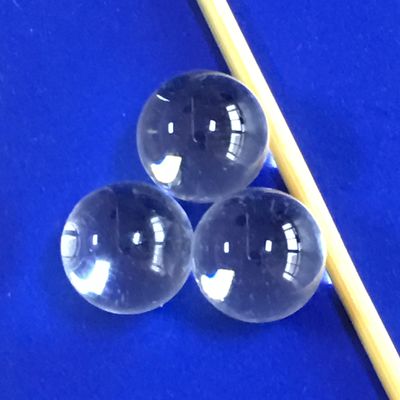

Custom fused silica half ball lens

Image Grand : Custom fused silica half ball lens

Détails sur le produit:

Lieu d'origine:	CHANGHAÏ, CHINE
Nom de marque:	Advance
Numéro de modèle:	Personnalisation

Conditions de paiement et expédition:

Quantité de commande min:	10 morceaux
Prix:	$1.00 - $100.00/Pieces
Détails d'emballage:	Le sac de Bag/PE/bulle d'air nettoyés à l'aspirateur Bag/EPE écument/cartons
Capacité d'approvisionnement:	500000 morceaux/morceaux par semaine

Contact

Custom fused silica half ball lens

description de

Garantie:	-	Appui adapté aux besoins du client:	OEM, ODM
Utilisation:	Optique	Structure:	Plano-convexe
Forme:	Cylindrique	Nom de produit:	Lentille de cylindrique
Matériaux:	BK7, quartz, infrarouge, saphir, GE, SI, ZnSe, CaF2, etc.	Longueur:	5-200mm
Largeur:	5-200mm	Rayon:	>3mm
Longueur focale:	-2000mm-2000mm	Exactitude extérieure:	N=1-3
Decenter:	3" - 1'	Qualité extérieure:	10/5-60/40
Domaine d'application:	Représentation, éclairage, laser, etc.	Port:	Changhaï ou condition

Specification

Range of diameter	Dia.0.7mm-Dia.400mm
Range of curve radius	R1.5-R∞ etc.
Tolerance of diameter	+/-0.1,+/-0.01,+/-0.005 etc.
Surface accuracy	λ,1/2λ,1/4λ,1/10λ etc.
Tolerance of Thickness	+/-0.1,+/-0.05,+/-0.01 etc.
Centration	+/-2',+/-1' etc
Aperture N	5,1 etc.
Irregularity ΔN	2,1,0.5,0.2 etc.
Surface quality	60/40.40/20,20/10,10/5 etc

Ball lens

Spherical Ball Lenses are commonly used for laser Collimating and focusing, laser-to-fiber coupling, fiber-to-fiber coupling, and
fiber-to-detector coupling.Larger spheres are easier to handle and ease the sensitivity of translational alignment. However,
smaller spheres has the benefit of fitting into smaller packages.Ball lenses are highly polished spheres made of optically
transparent homogeneous materials.Carefully controlled manufacturing process produces spheres with precise diameters and
unsurpassed Surface quaWe supply optical spherical ball lens,Half-ball (hemispherical) lenses are ideal for applications such as
fiber communication, endoscopy, micros copy, optical pick-up devices, and laser measurement systems.

Recommend Products

Company Profile

Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc. Company Advantages: 1. Have comprehensive design, production and sales capabilities, and provide customers with one-stop convenient procurement services; 2. It has tens of thousands of optical molds and samples, which can provide customers with fast proofing services with low cost; 3. Be able to participate in the customer's new product research and development early, provide feasible plans and suggestions, and make the project less detours;

Certifications

Exhibition

Packing & Delivery

FAQ

Q:What are your main products or Which fiefd do your products be used?
A:We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical
lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as
imaging,Laser,Lighting etc.

Q:What's your advantage?
1. We have about ten thousands optical modules and fixturesin stock,and employ several outstanding technicians and manager.that
will enable to provide customer excellent quality in shortleadtime,also can save the plenty of develop cost for customer.
2. We can help customer to optimize the optical system whichthey dislike,and provide the free optical solution or suggestion.

Q:What's your MOQ?
A:10pcs.

Q:What's your leadtime?
A:1day for inventory and 25~35days for the new project.

Q:What's your shipping type?
A:Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.

Q:What's the payment condition?
A:T/T,L/C,VISA,Paypal,Alipay or Negotiation.

Q:What's your quality guarantee period?
A:Three years.
